Will LS1M work on my car?

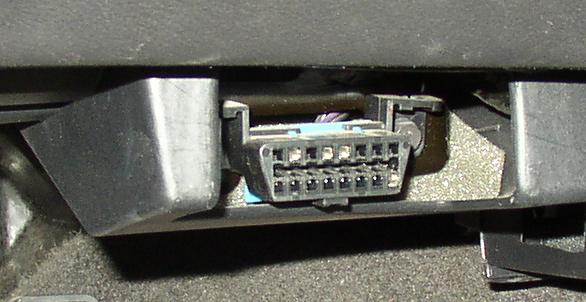

LS1M uses the VPW protocol for OBD2.This protocol is the one GM has used for its cars & trucks since 1996.All GM vehicles from 1996 to present should work.To verify that your car has OBD2, look for the OBD2 connector.Itís a 16-pin D-shaped connector, usually located under the dash.Pins 2, 4, 5 & 16 must be present (they should have a metal piece in them).Pins are numbered 1-8 across the top & 9-16 across the bottom, left to right.



Back to top

What if I already have a Palm?

LS1M has been successfully run on many different Palm models.If you have a Palm m100, m105, IIIxe or IIIc, then you should be good to go.These models come with a serial hotsync cable that plugs right into the LS1M cable.If you have another Palm model like the m125 or m500 series or one of the newer Tungsten models, check the hardware specs and make sure it has a serial port.You will also need to purchase a serial interface cable (almost all new PDAís come with only a usb cable, which wonít work) with a Female DB9 connector on it.These are available from http://www.palmone.com or http://www.pdaparts.com or other online stores.You can also check ebay.If you have a Handspring Visor or any other non-Palm brand PDA, the OBD-2 interface cable may need to be modified to make it work.This is due to the Visor and other models having an unpowered RS232 port.Email for more details.



Here is a list of PDA models that have been used with LS1M:

Brand

Model

Works with LS1M?

Comments

Handspring

Visor

Yes

Requires dip switch inside little black box to be turned on

IBM

Workpad C3

No

One customer reported it didnít work.Not sure why, since itís essentially a Palm V

Kyocera

6035 (Cell phone)

Yes

Requires data (serial) hotsync cable

Palm

IIIC

Yes



Palm

III, IIIx & IIIxe

Yes



Palm

i705

Yes



Palm

m100/m105

Yes



Palm

m125

Yes

Requires serial hotsync cable (usb wonít work)

Palm

m130

Yes

Requires serial hotsync cable (usb wonít work)

Palm

m500/m505/m515

Yes

Requires serial hotsync cable (usb wonít work)

Palm

Tungsten C

Yes

Requires serial hotsync cable (usb wonít work)

Palm

Tungsten E, T3

No

Does not have a serial port

Palm

Tungsten T/T2/T3

Yes

Requires serial hotsync cable (usb wonít work)

Palm

Tungsten W

Yes

Requires serial hotsync cable (usb wonít work)

Palm

VIIx

Yes



Palm

Vx

Yes



Palm

Zire 21

No

Does not have a serial port

Palm

Zire 71

Yes

Requires serial hotsync cable (usb wonít work)

Sony

Clie PEG-S320

Yes







Can I use a laptop instead of a Palm?

Yes.There is a free program called Palm Emulator that programmers use to test their code.It simulates a Palm PDA on the laptopís screen.There are two things required if youíre going to use a laptop.First, you have to download & install the Palm Emulator.Itís free after you register.More information is available here:

http://www.palmos.com/dev/tools/emulator/



Update 12/05: The emulator has disappeared from their website.You can also try the simulator for Zire 71, which has been copied here:

http://www.ls1m.com/demo/z71sim.exe

Right-click on the link above & save it to a folder on your computer.Then double-click to install.Once itís been installed and you run it off the Start menu, youíll have to right-click the screen & go to Install -> DatabaseÖ, then browse to find the ls1m.prc file.Click the Home button a few times until you can see the LS1M icon.Right-click again & select Settings -> Communication -> Communication Ports.Click on Cradle at the top, then Edit, then change the ďBound ToĒ value to match your computerís com port number.After thatís all done, you can right-click again, go to Storage -> SaveÖ and save a snapshot file that you can load next time.



The other thing you will need is a null-modem adapter and possibly a gender changer.Your laptopís serial port is a 9-pin D-shaped male connector.The LS1M obd2 cable is also a 9-pin D-shaped male connector.To get these two to talk, you have to put in a female-to-female adapter on the laptop, then a null-modem adapter.The null-modem adapter is necessary because the laptop transmits & receives on different pins than the Palm does.Both the adapter and gender changer are available at Radio Shack or other electronics supply house for a modest fee, usually $5 or so.



Back to top

Can I mount it to my dash?

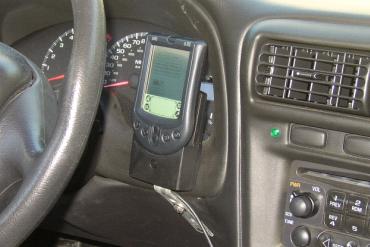

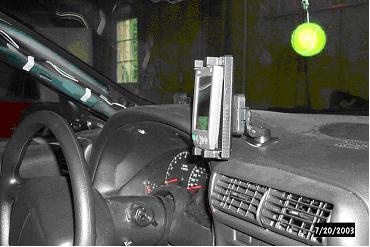

There are a couple of options available for mounting the Palm in the car.One is to use a Belkin folding hot-synch cradle & attach it to the car with a bracket (picture on the left).These cradles are available occasionally on EBay.There are also commercially available PDA holders (picture on the right).The particular one in this picture is from Arkon (http://www.arkon.com/palm2.html), model CM228.

††

Back to top

How much does it cost?

Are there any group discounts?

See the pricing schedule at the left.



Back to top

What is included?

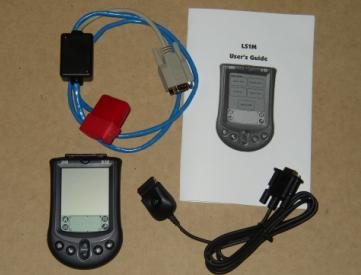

The full package includes everything you need to plug in and start scanning: a Palm handheld computer with batteries and stylus, a hot-synch cable, an OBD-2 interface cable, software disk and instructions.When available, a hotsynch cradle will also be included for use with your PC.The software disk contains Palm Desktop, which is a program you use on your desktop computer to back-up the data on the Palm and install new programs, as well as extract logged data from the Palm.Other documentation is also included on the CD.

Back to top

How fast does it scan?

Testing on LS1 cars has shown a scan rate of 330-350mS for 10 parameters (30 parameters per second), down to 50-70mS for a single parameter (20 times a second).The fewer parameters you select, the faster the scan time is.During wide-open-throttle (WOT), the response time is about 20% slower because the carís computer is busy and doesnít respond as quickly to scan tool requests.



Back to top

Iíve never used a Palm beforeÖ

LS1M was designed for simplicity.Anyone can be up and running with it in 5 minutes.The userís guide that comes with LS1M will take you through the Palm basics and show you how to plug in & run the program.If you can read this, you can use a Palm, which is much simpler than a computer.



Back to top

What about software updates?

Updates to the LS1M program happen continuously and are free to all LS1M customers.Installing the new version over the old one is as easy as installing any third-party application on a Palm, using the Palm Desktop program.Just copy it to your PC, add it to your Palm Desktop, and hot-synch.Users are emailed about updates as they are available, and can be downloaded on the download page.To see if you are already running the current version, click the ďAboutĒ button on the scanner & note the version number.



Back to top

Can I export logs to Excel or EFILive?

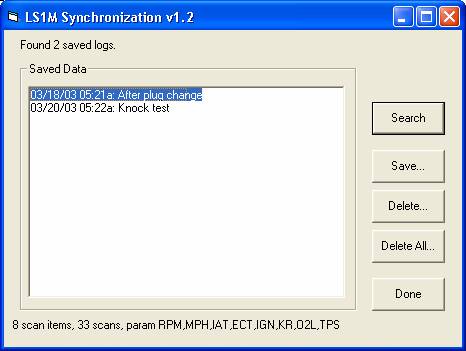

Yes.If you install the LS1M Synchronizer (included), you have the option of copying your saved logs from the Palm in comma-delimited format or EFILive log file format.When you hot-synch, a dialog box pops up that lists all the saved logs:



You simply select the log you want to save to the PC, and pick a location for the file.The LS1M Synchronizer is available on the download page, and is also included on the LS1M Software CD.EFILive is another scan tool that uses another cable design, but the efilive program itself is a free download, available at www.efilive.com.





Back to top

How do I order one?

Send check or money order to:



Mark Chauvin

555 Shealy Street

Webster, Texas 77598



Or for quicker service, send money via PayPal to:



chauvin555@sbcglobal.net



On the Pricing page, thereís a button you can just click to order via Paypal.



Please include your mailing address for shipping, and specify all the options from the Pricing page (at left).Packages usually ship out the next business day after the order was received.Allow 2-3 days for US shipping, and a little longer for international orders.



Back to top

Conduit Registration Error

There is a new installation routine for the LS1M Synchronizer available on the Download page that should alleviate this problem.



Back to top

ďCanít find OBD2 CableĒ

This message indicates that the LS1M program canít talk to the OBD2 interface cable.First, double-check all connections, and make sure the car is running or has the key in the ďrunĒ position.Check the fuse that powers up the OBD2 connector in the car, which is usually the same one that powers up the cigarette lighter.If you have access to a volt-ohm meter, check for 12 volts between pins 4 & 16 on the carís OBD2 connector (as you look at the connector from the driverís seat, pins are numbered 1-8 across the top & 9-16 across the bottom, left to right).Using the same hotsynch cable (not the cradle), perform a hotsynch on the computer to make sure the Palmís serial port is OK.You can also try a fresh set of batteries in the Palm.If all else fails, email for more help.



Back to top

Palm Serial Cables

Many Palm model PDAís have serial ports, but only include a USB hotsynch cable.To use a PDA with LS1M, you must have a serial hotsynch cable with a Female DB9 connector on it.To purchase one for your PDA, visit http://www.palmone.com/us/products/accessories/ orother internet sites like http://www.pdaparts.com or maybe ebay.If you canít find one, make sure that your model supports it.Thereís a list of PDA specifications at http://www.palmone.com/us/products/handhelds/.USB to Serial adapters are not recommended.
